4U industrial control host
4U industrial control host
4U industrial control host
4U industrial control host
4U industrial control host
4U industrial control host

4U industrial control host

Main characteristics:

1, Intel H110,LGA1151,TDP 65W

2, Support DDR4 2133,2*288- pin DIMM Slot,Up to 32GB

3, 1*Realtek PCI- Ex16,1*PCI- Ex4,1*PCI-E*1,4*PCI(ITE 8892E)

4, 1*VGA,1*DVI-D,1*HDMI,2*USB2.0,4*USB,3.0,2*RJ- 45 FOR 1- 000Mbps,1*GPIO(DIO,8-bit,2*5pins),4*SATA III(6GB/s)

Ordering information:

Model LDPC4U

Specifications PCLD4U

  • Introduction
  • Specification parameters
  • Dimension drawing
  • Online consultation

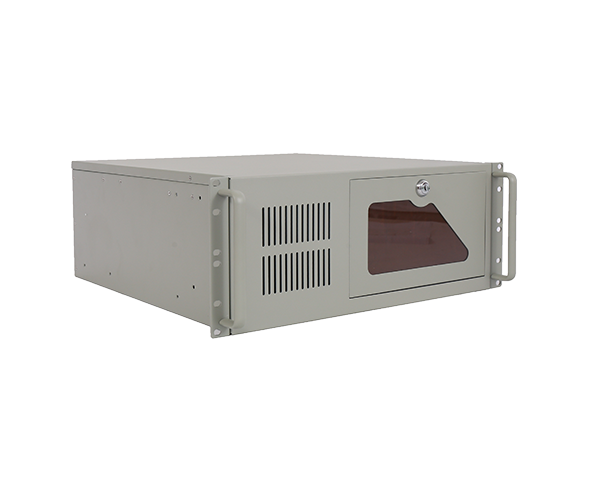

  • 4U.png

    4U industrial control host

    Features

    •Industrial quality supports 24-hour startup

    •Interfaces can be added as required

    •Embedded installation

    •Support customization

    Application area

    Finance, medical treatment, transportation, electric power, monitoring, environmental protection, measurement and detection, industrial automation, intelligent manufacturing


    Structural

    parameters

    Appearance dimension482*178*450mm
    Texture of materialSheet metal
    Net weight6kg
    ColourGrey

    Environmental

    parameters

    Power SupplyAC 210-240V
    Power waste90W-180W
    Storage temperature-30°-70°
    Working temperature-20°-60°
    Storage humidity0-90% non condensing
    Working humidity10-90% non condensing

    Configuration

    parameter

    Supportable systemwin7/win8/win10/Linux
    CPUI3/I5/I7
    MemoryDDR4 2G/4G/8G
    Hard disk64G/128G/500G/1T

    I / O

    interface

    Audio frequencyRratek ALC662 HD Audio
    Serial port6(Serial port 1,RS232/422/485 Serial port2-6,RS232)
    DVI1
    VGA1
    LAN2
    USBUSB 2.0*2 USB 3.0*4
