Fan less industrial control host
Fan less industrial control host
Fan less industrial control host
Fan less industrial control host
Fan less industrial control host
Fan less industrial control host

Fan less industrial control host

Main characteristics:

1, Intel Q370,LGA1151, TDP≤65W

2, Support 2*DDR4 2400 notebook memory,Max 64GB

3, 5*Intel I211AT, 1*Intel I219LM FOR 1000Mbps

4, 6*COM RS232(COM1,2 support RS232/485/422) 1*GPIO(8xDI, 8xDO),6*USB3.01*PCIE X16,1*PCIE X4, 2*Mini PCIe

Ordering information:

Model LDBOX- Q370

Specifications PCLDBOX- Q370

  • Introduction
  • Specification parameters
  • Dimension drawing
  • Online consultation

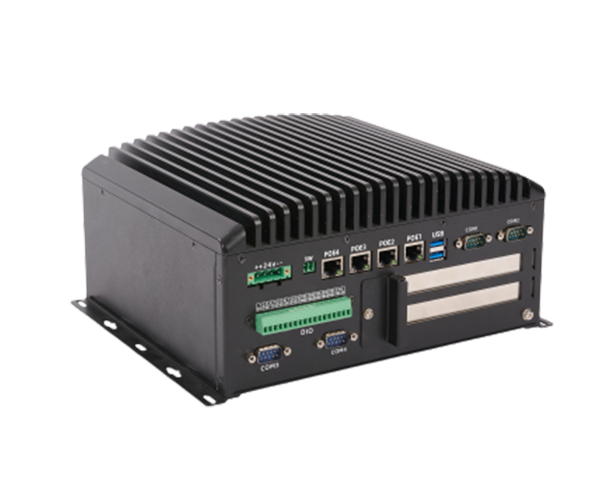

  • 无风扇.png

    Fan less industrial control host

    Features

    •Industrial quality supports 24-hour startup

    •Rich interface, multi-purpose

    •Mute and dustproof, PCIe devices and 2.5-inch high-capacity hard disk

    •Support customization

    Application area

    Finance, medical treatment, transportation, electric power, monitoring, environmental protection, measurement and detection, industrial automation, intelligent manufacturing

    Structural

    parameters

    Appearance dimension250*218*121.8mm

    Environmental

    parameters

    Input powerDC 18-36V
    Texture of materialAluminum alloy, sheet metalPower waste60W-135W
    Net weight5kgWorking temperature-20°-60°
    ColourBlackWorking humidity10-90% non condensing
    Fixing hole size270*90--180mm

    Storage temperature

    -40°-80°

    Configuration

    parameter

    Supportable systemWIN10/LinuxStorage humidity0-90% non condensing
    CPUG4900/G5400/I3/I5/I7

    I / O

    interface

    Display interface1*DP,1*DVI,1*VGA
    MemoryDDR4 4G/8G/16GSerial port6
    Hard disk64G/128G/256G/500G/1TGPIO1*GPIO(8*DI,8*DO)
    WIFIOptionalLAN6


    USB6*USB 3.0
