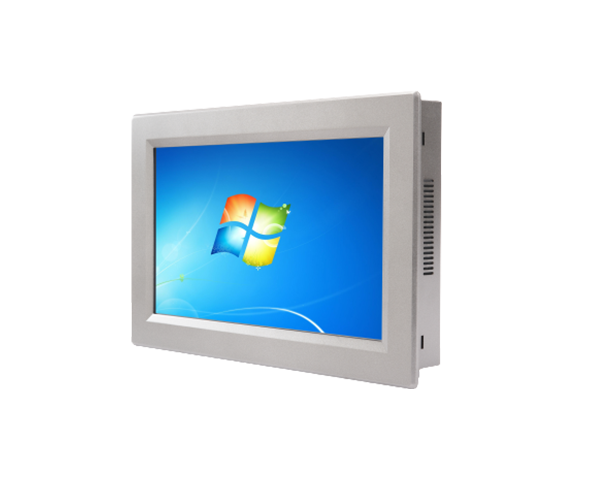

13.3-inch industrial tablet
Main characteristics：
1、Intel H110,LGA1151,TDP≤65W
2、Support 2*DDR4 2400MHz Notebook memory，Max 16GB
3、3*Intel I211AT, 1*Intel I219LM FOR 1000Mbps,Both support POE
4、4*COM RS232 ,（COM1,2 support RS232/485/422）
5、1*GPIO（10pin）,6*USB2.0,2*USB3.0 ,2*Mini PCIe
6、Support wide voltage: 12-24V DC input
Ordering information：
Model LDTPC133K
Specifications TPCLD133K- RALG
13.3-inch industrial tablet
Features
•Support VESA, embedded wall hanging and other installation methods
•Industrial quality supports 24-hour startup
•The front plate reaches IP65 protection grade
•Support customization
Application area
Finance, medical treatment, transportation, electric power, monitoring, environmental protection, measurement and detection, industrial automation, intelligent manufacturing
Display parameters | Display size | 13.3 inches | Environmental parameters | Input power | DC 12V 7.5A&24V 5A |
| Resolving power | 1920*1080 | Overall power consumption | 60W-90W | ||
| Backlight | LED | Working temperature | -20°C-60°C | ||
| Aspect ratio | 16:9 | Working humidity | 10-90%non-condensing | ||
| Brightness | 300cd/m² | Storage temperature | -40°C-80°C | ||
| Contrast ratio | 1200:1 | Storage humidity | 0-90%non-condensing | ||
Touch parameters | touch screen | Five wire resistance | Structural parameters | Appearance dimension | 343*222*53mm |
| Light transmittance | 80%±3% | Texture of material | Aluminum alloy | ||
| Operation strength | ≤50g | Net weight | 3.5kg | ||
| Response speed | ≤15ms | VESAsize | 100*100mm | ||
| Touch life | 35 million times | Opening size | 335*214mm | ||
Configuration parameter | Supportable system | win7/win8/win10/Linux | Connected to I / O port | Display interface | EDP |
| CPU | G3900/G4400/I3/I5/I7 | Serial port | 2 | ||
| Memory | DDR4 4G/8G/16G | Audio frequency | Realtek ALC662 | ||
| Hard disk | 32G/64G/128G/256G | LAN | 2/4 | ||
| WIFI | Optional | USB | 2*USB 3.0, 2*USB2.0 |
